PRODUCT INFO

One of our Software products is Stefi, that is a client server application to browse and update NonStop files or transfer/migrate them to Oracle/MS-Sql tables .

It uses DES/3DES encryption for data transfer, ensuring security and supporting PCI-DSS compliance.

It can be evaluated from two perspectives,
- for a BASE24 user it is a GUI for BASE24 files with great details,
- for a HP NonStop server (Tandem) user, it is a general Windows client to Browse and Edit Enscribe files and SQL/MP tables (with integrated, "on-the-fly" DDL conversion for Enscribe files) :

1. Stefi for BASE24

It can be useful for: Developers, Testers, Operation Staff, Analysts, Data miners, Report makers

It can be useful in the following situations:

Sw. Development with database impact
Testing, error investigation
Certifications, EMV projects
File modification is needed
Examining client complaints
Analyzing special tx. situations
Windows reports from Tandem data
Backup/Use Tandem data on Windows (Download White Paper on this topic)

Some Case Studies can be found here.

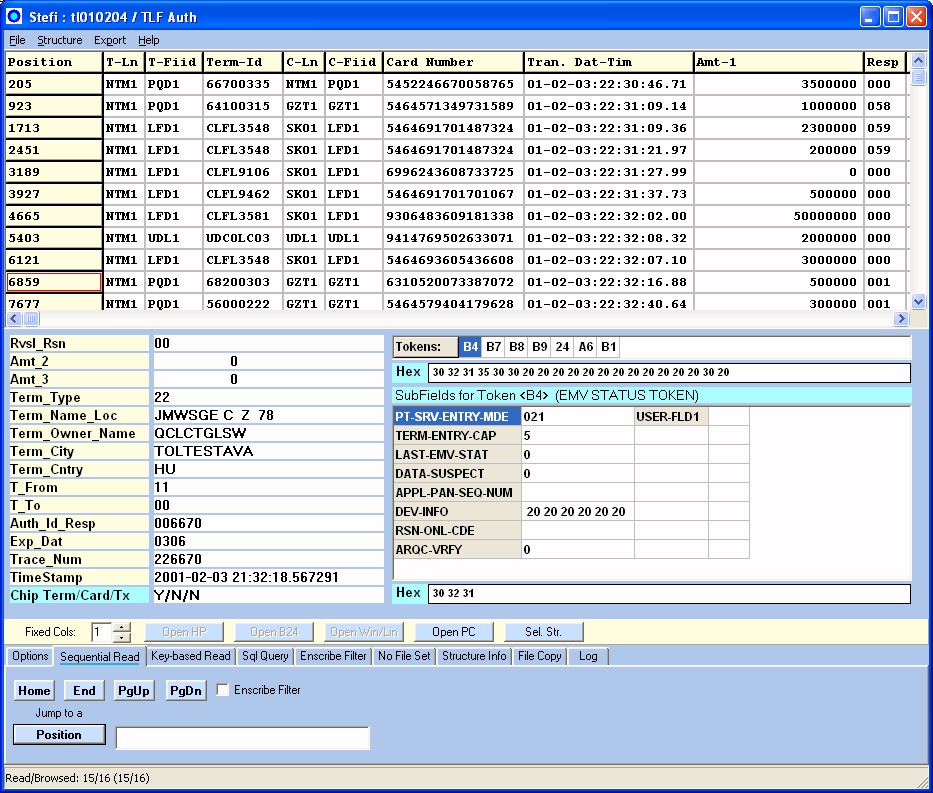

First of all, it is a next level Log File Perusal Tool for PTLF, TLF, ILF, PTLF&TLF Extracts:

Main featerus are as follows:

User-friendly GUI to easily browse the transactions
Personal tailoring of displaying/ordering the fields
Detailed tx. Response Time data is computed
Enhanced server side filtering for all the fields,
with regular expression support
Special filtering for Tokens:

Is a given Token present ?
Does it contain specific data?

Modern Token-Browser
Enhanced Chip Token recognition
Integrate transaction data into MS-Office applications
Copy transactions into ORACLE or Ms-Sql for full Sql query
Log file backups in Windows environment for online perusal of historical data
Perusal of large batch of Log Files
Sequential and Key-based perusal

In PTLF/TLF/ILF files certain codes have also their description: You only have to move the mouse pointer on the code to see the description

Some example of the codes that have the descriptions:

- POS/ATM/VISA/MasterCard/BicIso Response codes
- Transaction code (T-Cde)
- Message type (Typ)
- Transaction originator (ORIGINATOR)
- Transaction responder (RESPONDER)
- Point of Service Condition Code (PT-SRV-COND-CDE)
- Point of Service Entry Mode (PT-SRV-ENTRY-MDE)
- Merchant Category Code (RETL-SIC-CDE)

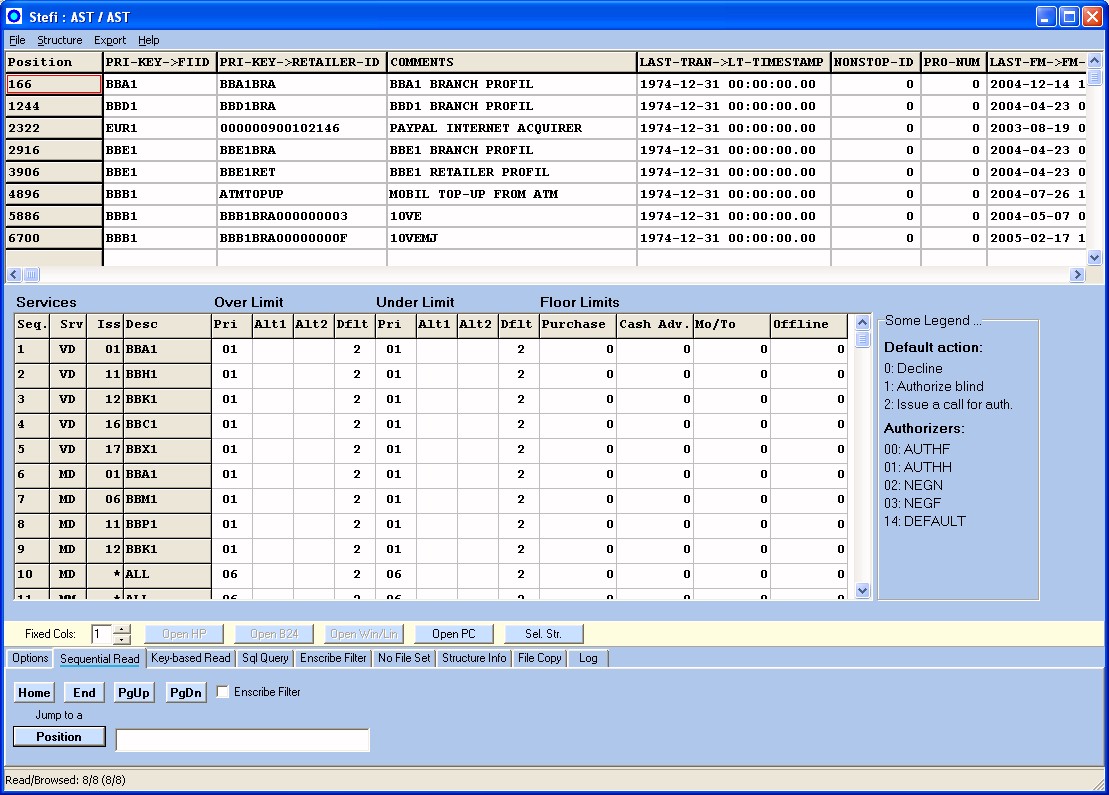

It is also a great tool for other BASE24 files:

Browse BASE24 files by LCONF Assign
Record structure recognition for the following files:
PRDF, IDF, ICF, ICFE, HCF, CPF, IPF (MC/Visa BINs), ATDS1, ATDD1, PTDS1, PTDD1, PBF, SEC, CAF, AST, LCONF, OMF CAF/PBF/CPF/IDF, SAF, APCF, IPCF, RTBL, TCF
DDL converter for any other record structure
Support for 3DES encryption

BASE24-eps considerations:

Log File Perusal

Eps can generate P/TLF Extracts in classic format, this can be perused with Stefi

Direct Journal Perusal not yet supported (we are looking for cooperating partner who already has eps Journal)

Other files

They can be browsed, record structure definitions can be got from Data Access Layer definitions

Other Platforms

The Windows/Linux servers are written in C++, that can be ported to other platforms BASE24-eps is running on.

2. Stefi for Hp NonStop server users:

What is it all about?

A client-server (windows-Tandem) application that opens a window, a nice GUI to your Tandem files.
Sql tables and Enscribe files can be easily browsed and edited, like using a spreadsheet application.
It can handle the Enscribe database features and can cope with complicated record structures (third party plugins can be used)

Main features are as follows:

Sequential Browsing (Home, End, PgDn, PgUp)
Enscribe keys can also be used
For SQL tables we can create freehand Sql where clauses.
For Enscribe files we can make „Enscribe Filter”, that can contain server-side filters for any of the fields, with regular expression support.
The file, or filtered part of it, can be copied to the following destinations:

- Excel (csv)
- PC text file
- HTML
- PC Binary file
- ORACLE table
- MS Sql table
- Existing Tandem Enscribe file

Command line utility for batch file copying
Tandem-to-Tandem copy with the filtering features
It can handle NonStop Enscribe files copied to the Windows environment with FTP protocol, the same way as if they were on the server (in read-only mode, and no key file support exists in this situation)

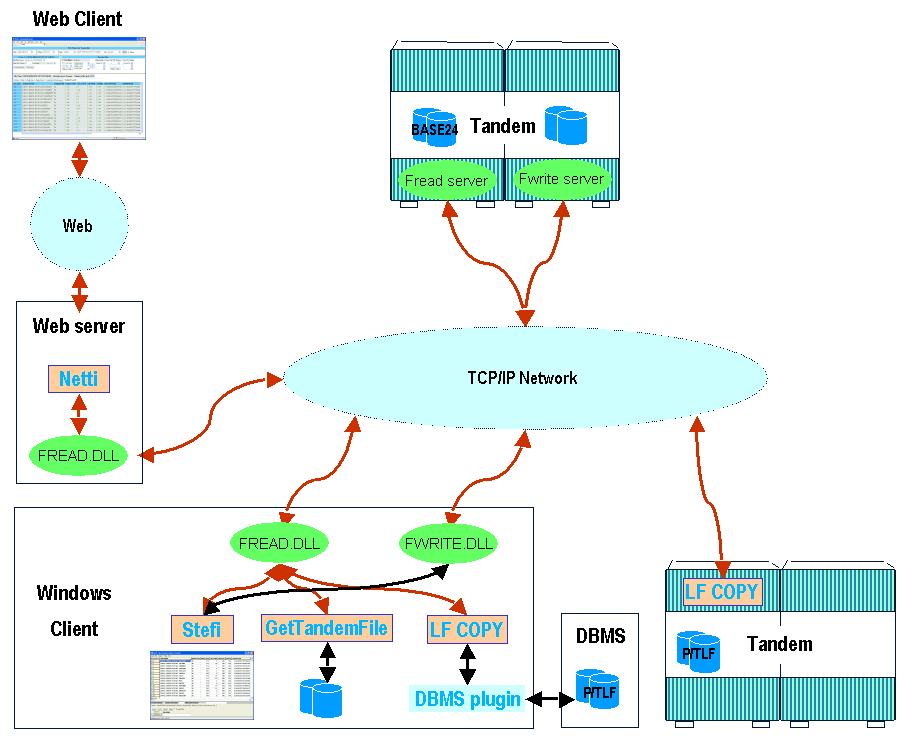

Diagram summary of software components

Addional information

Presentation Slide Show

Videos, demonstrating some of the functions. Basic Functions
Using a File Set
Copy To Excel

Windows help file Windows help file (5.2)

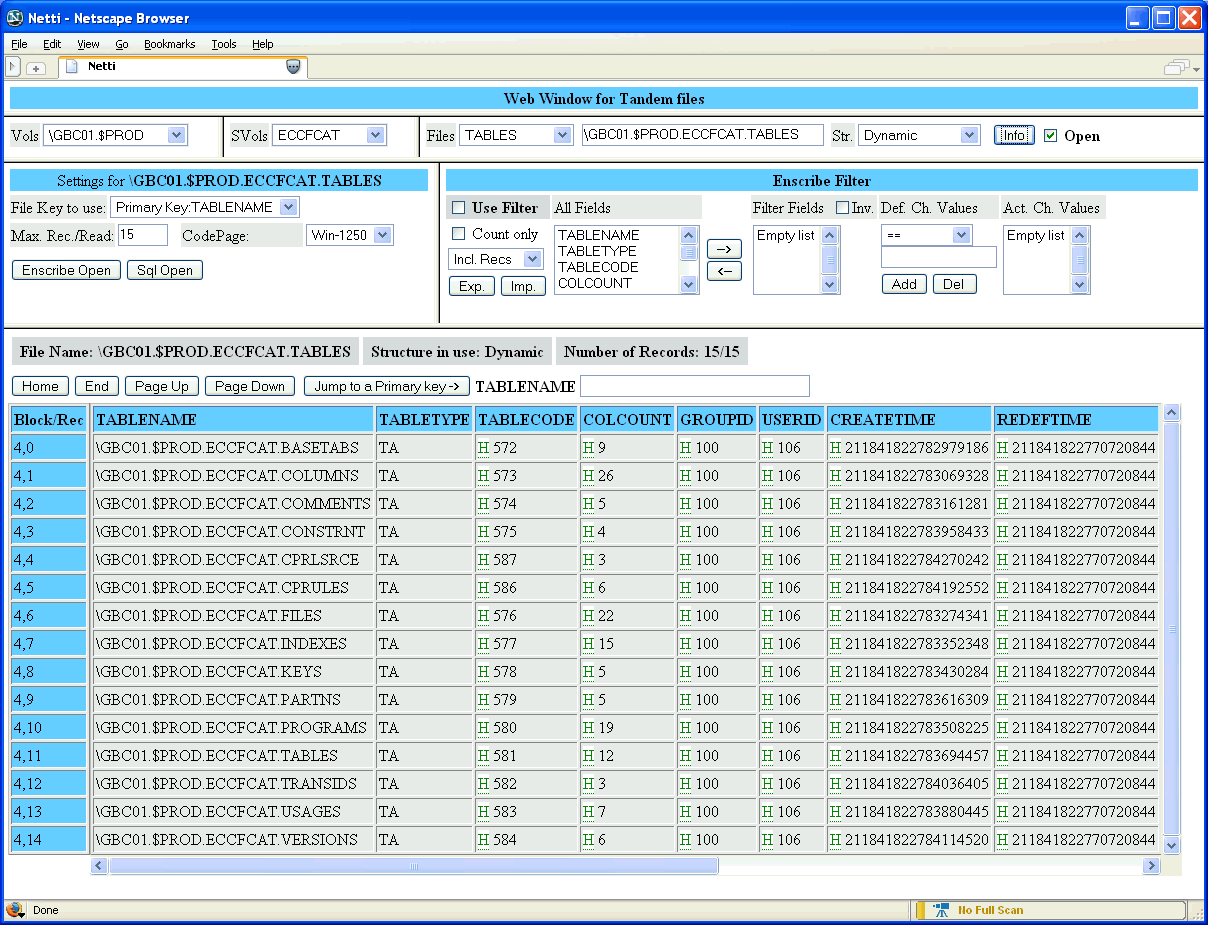

Netti is another version of the above software that can be used from a Web browser.

Screenshot

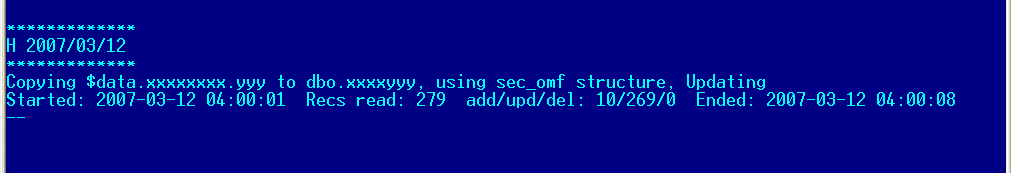

GetTandemFile is a smart command line program, copying Tandem Sql/Enscribe files directly into Oracle or Ms-Sql table, Ms Excel, html or simple text file.
The copy destination can also be another Tandem file.
It uses the same server on the Tandem side as Stefi, accepting its record-structure definitions, Enscribe/Sql filters.
It can be also used as a CGI script, to send the html output directly into the Web Browser.

Screenshot

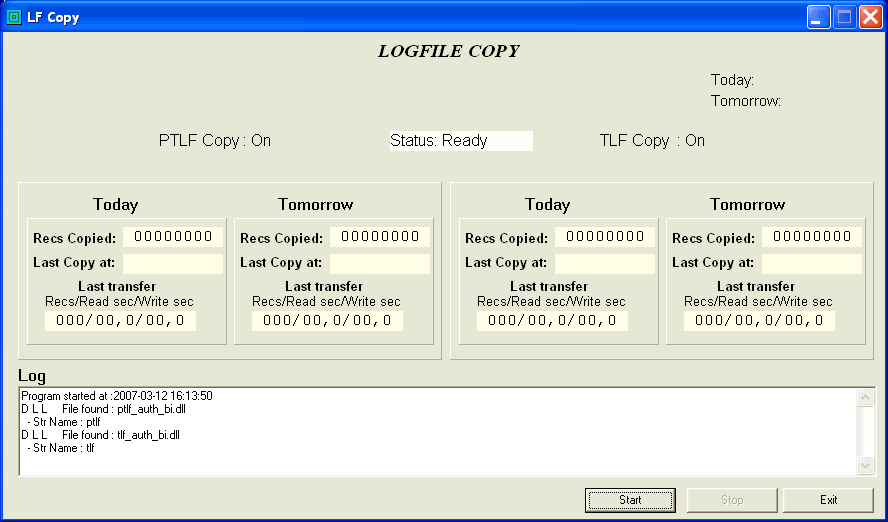

LF Copy is a client/server technology for BASE24 (P)TLF mirroring/replicating into Windows/Tandem destinations
It is a cost-effective way to replicate your transaction data with an open interface to support your special destination database management systems.
It uses the same server on the Tandem side as Stefi.

The Tandem destination will replicate the transactions into Enscribe files.

The Windows side database management is handled through an open API, so you can adjust the available destination modules to your own needs, or you can develop your owns.

Currently the following destinations are supported through the Windows platform:

- Microsoft Sql Server tables
- SAS system tables
- txt files (for demo purposes)

The SAS System interface can be useful if you would like to use the SAS Fraud Prevention & Detection solution.

There is an offline development environment to develop database plugins for LF Copy without a Tandem connection. Instead of getting the BASE24 transaction data from a Tandem, the data are read from local PC files. There is real data for two days (Day1 and Day2), they are linked after each other, so there is a real time environment and we can test our plugins for long time of periods. The systems behaves as if the data were read from a Tandem, LF Copy itself does not know where the data comes from, he is simply instructed to use a special dll instead of the normal one.
The plugin development can be done with Borland Delphi. Source code of working plugins and a template with comments help the development.

Screenshot

Addional information
Diagram summary of software components
Presentation	Slide Show
Videos, demonstrating some of the functions.	Basic Functions Using a File Set Copy To Excel
Windows help file	Windows help file (5.2)


Netti is another version of the above software that can be used from a Web browser.
Screenshot

GetTandemFile is a smart command line program, copying Tandem Sql/Enscribe files directly into Oracle or Ms-Sql table, Ms Excel, html or simple text file. The copy destination can also be another Tandem file. It uses the same server on the Tandem side as Stefi, accepting its record-structure definitions, Enscribe/Sql filters. It can be also used as a CGI script, to send the html output directly into the Web Browser.
Screenshot

LF Copy is a client/server technology for BASE24 (P)TLF mirroring/replicating into Windows/Tandem destinations It is a cost-effective way to replicate your transaction data with an open interface to support your special destination database management systems. It uses the same server on the Tandem side as Stefi. The Tandem destination will replicate the transactions into Enscribe files. The Windows side database management is handled through an open API, so you can adjust the available destination modules to your own needs, or you can develop your owns. Currently the following destinations are supported through the Windows platform: - Microsoft Sql Server tables - SAS system tables - txt files (for demo purposes) The SAS System interface can be useful if you would like to use the SAS Fraud Prevention & Detection solution.
There is an offline development environment to develop database plugins for LF Copy without a Tandem connection. Instead of getting the BASE24 transaction data from a Tandem, the data are read from local PC files. There is real data for two days (Day1 and Day2), they are linked after each other, so there is a real time environment and we can test our plugins for long time of periods. The systems behaves as if the data were read from a Tandem, LF Copy itself does not know where the data comes from, he is simply instructed to use a special dll instead of the normal one. The plugin development can be done with Borland Delphi. Source code of working plugins and a template with comments help the development.
Screenshot
